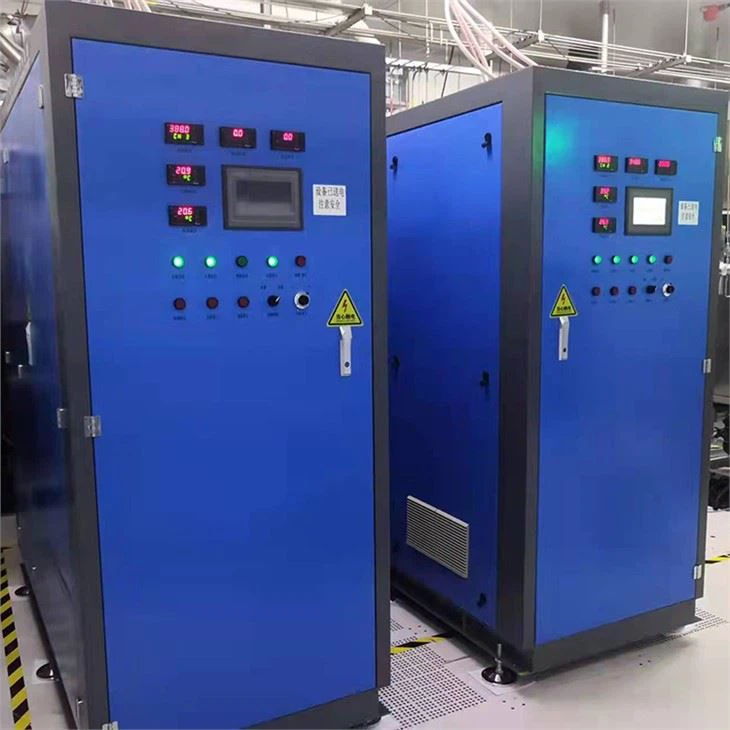

Series Type Super Audio Frequency Induction Heating Equipment

Series type super audio frequency induction heating equipment - Series IGBT medium frequency ultra-audio induction heating equipment

Scope of application

It is suitable for metal smelting, heat transfer, hot forging, heat preservation, metal quenching, annealing, normalizing, tempering and other heat treatment processes.

Second, technical characteristics

1. The inductor voltage is high, the current is small, and the overall heating efficiency of the power supply is higher than that of the parallel power supply.

2. Inverter side PSM power adjustment technology is adopted, the load adaptability is strong, the impedance matching is easy, the power factor on the network side is ≥ 0.92, and the harmonic content is relatively the lowest.

3. The inverter bridge uses the power unit superposition method to complete the power synthesis, which is convenient for installation and maintenance.

4. Other technical characteristics are basically the same as our company's parallel IGBT medium frequency ultra-audio induction heating equipment.

Equipment configuration

Customized according to user needs, the full set of equipment is composed of series induction heating power supply, resonance channel, circulating soft water cooling system, operation table (optional), automatic control system (optional) and other parts.

Human-machine interface and fault diagnosis system (optional)

1. The use of PLC + touch screen to form a perfect human-machine interface system.

2. Realize the comprehensive automatic control of the power supply system.

3. Fault display and fault diagnosis system.

Specifications and models

The minimum power is 50kW, the maximum power is 2000KW.
