High Frequency Welding Pipe Production Line PLC Automatic Control

A new generation of series solid state high frequency welder

1. Solid state high frequency welding machine composition

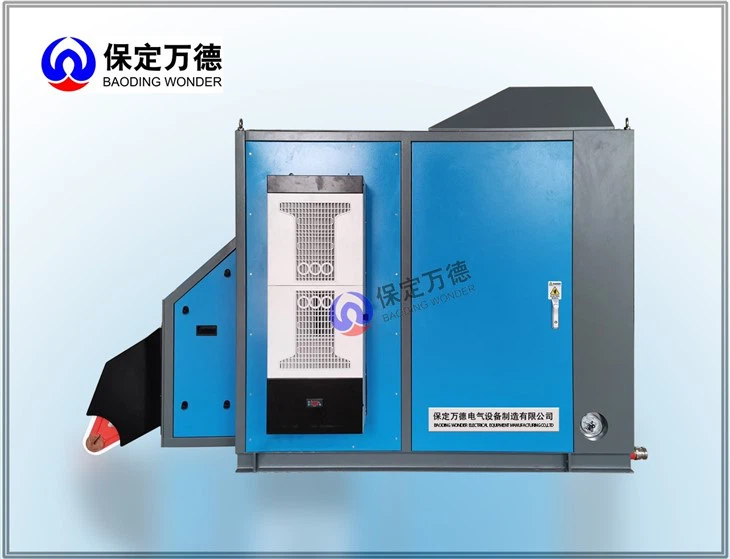

The whole set of solid state high frequency welding machine is composed of switching rectifier cabinet, inverter output cabinet, water-water cooling system, central console and mechanical adjustment device.

2. Device parameters

Equipment name: Solid state high frequency pipe welding machine

Dc power: 100-2000KW

Dc voltage: 450V

Dc current: 222-5333A

Design frequency: 100-400kHz

Channel output form: no welding transformer output, secondary resonance

3. Operating environment requirements

The color of the ground cable must be clearly different from that of the control cable. The cross-sectional area of the ground cable must be greater than 6mm2, and the ground resistance must be no more than 4 ohms.

The altitude should not exceed 2000 meters, otherwise the rating should be lowered for use.

The ambient temperature should not exceed +40℃ and not lower than -5℃.

The relative humidity of the air is not more than 85%.

No violent vibration, no conductive dust, no various corrosive gases and explosive gases.

The installation inclination is not more than 5 degrees.

Install in a well-ventilated place.
