Three-dimensional Adjustment Bracket

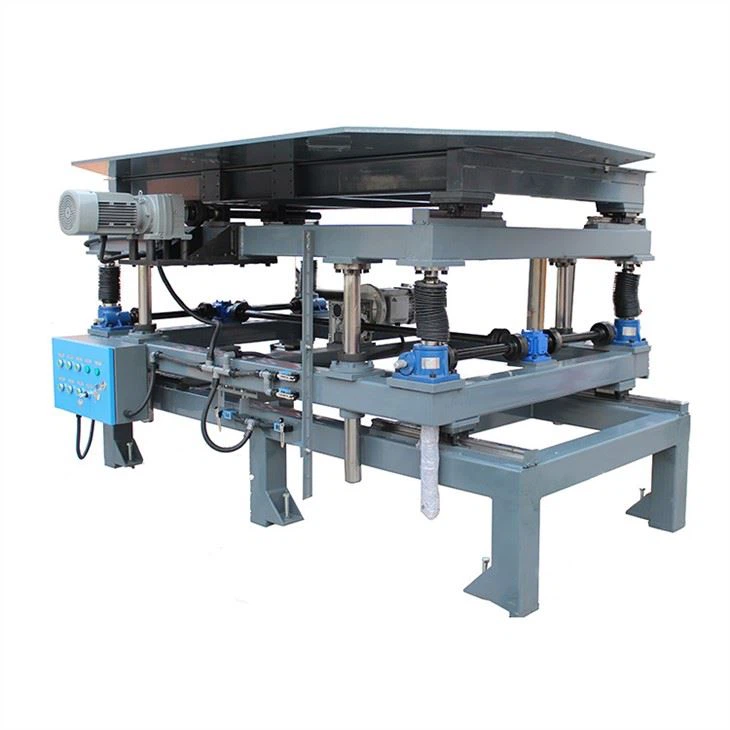

Three-dimensional adjustment bracket

Scope of application

It is suitable for induction welding/contact welding, and is used for the installation and three-dimensional direction adjustment of the inverter output cabinet.

The adjustment bracket is a basic lifting and horizontal adjustment equipment, which has many functions such as lifting, lowering, forward, backward, left and right, advancing with the help of auxiliary parts, turning over and adjusting various height positions. Widely used in machinery, metallurgy, construction, water conservancy, chemical industry, culture and sports and other industries.

Second, the technical characteristics

1. According to the technical requirements of the buyer, it is reasonably designed to move the inverter output cabinet in three directions: water and vertical.

2. The vertical direction is electric, and the horizontal direction is manual or electric.

3. There are protective sleeves on the upper and lower screw rods of the elevator.

4. It has many advantages such as compact structure, small size, light weight, no noise, safety and convenience, flexible use, high reliability, complete functions and long service life.

5, can be single or multi-level linkage.

6. High positioning accuracy and high repeatability. Low frictional resistance and high precision retention.

7. Easy to install and interchangeable.

Equipment configuration

Lifts are used in the vertical direction.

Linear guides are used in the horizontal direction.

The power source can be manual by hand wheel or automatic by motor.

Specifications and models

Conventional countertops are 700 wide.

Conventional countertops are 800 wide.

Conventional countertops are 900 wide.

Conventional countertops are 1000 wide.

Conventional countertops are 1200 wide.

The total stroke of conventional lift is 200.

The total front and rear travel of the conventional type is 360.

The total left and right travel of the conventional type is 200.

Adjusting brackets have different structural types and assembly types, and the lifting height and adjustment range can be customized according to user requirements.
